Bifold Shutter Styles

The bifold system allows you to fold the shutters back completely to maximise the view through your windows or doors.

Bifold shutters can either be fitted inside the window/door reveal or on the outside face of it. If fitted inside the reveal, the top track will be covered with a colour-matched flat 54mm fascia board. If face-fitted on the outside frame or wall, the top tracking will be attached to a pelmet and concealed behind a colour-matched flat 100mm fascia board.

Thermalite shutters are securely attached from a top fixing and assisted by a bottom track, making for a strong and secure operation.

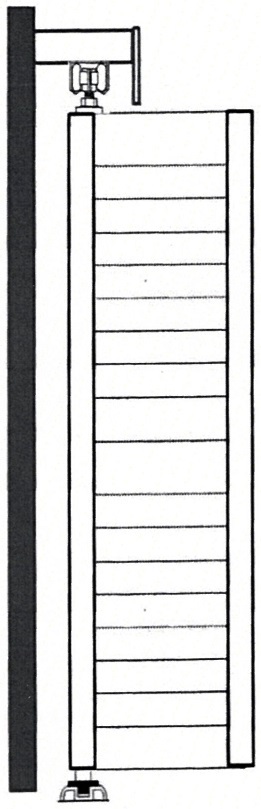

Side view of a bifold shutter

Bifold shutters can be configured to suit any individual window or door but they need to be arranged in increments of two panels. Below are some popular configurations.

Bifold Shutter Configurations

2 Panel Bifold

Can be configured to stack either left or right.
4 Panel Bifold

One pair moves left and the other pair moves right.
6 Panel Bifold

One pair stacks back to one end (left or right) and the remaining four panels stack back to the other end.
8 Panel Bifold

Each set of four panels stacks back to the left and right.
